Heat Trace Products

Freeze Protection/Temperature Maintenance

2700 Series (2703, 2705, 2708, 2710)
Self-Regulating Heating Element

Dekoron 2700 Series self-regulating heating elements change cable heat output in response to changes in ambient temperature. The conductive core increases its heat output as the ambient temperature falls, decreasing output as the temperature rises. Heating element is available with either tinned copper or stainless steel braid. For use in hazardous areas.

Medium Temperature Maintenance

2300 Series (2305, 2310, 2315)
Self-Regulating Heating Element

Dekoron 2300 Series self-regulating heating elements increase or decrease heat output as ambient temperatures fall or rise, and will maintain pipe temperatures up to 250°F (120°C). Series 2300 cable withstands 150 psig saturated steam purging at 366°F (185°C). For hazardous areas, Series 2300 heating elements are available with stainless steel overshield to provide mechanical protection in mildly corrosive atmospheres, or tinned copper overshield with fluoropolymer jacket where cables are exposed to organic chemicals or harsh corrosives.

Freeze Protection

2800 Series (2803, 2805, 2806)
Commercial Grade, Self-Regulating Heating Element

Dekoron 2800 Series self-regulating heaters provide freeze protection for a range of commercial piping applications including: small diameter metal piping (heating element 2803, 3 watts/foot 120V), large diameter pipes and long circuit lengths (heating element 2806, 6 watts/foot, 120 or 240V versions); and non-metallic piping where an overall grounded metal covering is required (heating element 2805, 5 watts/foot, 120V).

High Temperature Maintenance

2000 Series (2005, 2210, 2015, 2020, 2025, 2030)
Self-Regulating Heating Element

Dekoron 2000 Series self-regulating heating elements increase or decrease heat output as ambient temperatures fall or rise, and will maintain pipe temperatures up to 375°F (190°C). Series 2000 cable withstands 190 psig saturated steam purging at 475°F (250°C). For hazardous areas, Series 2000 heating elements are available with stainless steel overshield to provide mechanical protection in mildly corrosive atmospheres, or tinned copper overshield with high temperature fluoropolymer jacket where cables are exposed to organic chemicals or harsh corrosives.

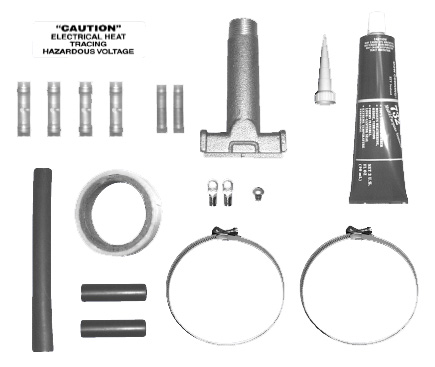

Electric Connections

Kits are available for making connections,
splices and terminations. Instructions are
included with each kit.

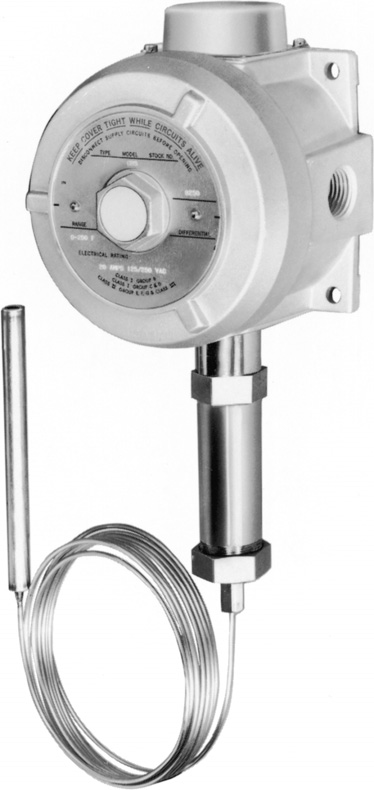

Thermostats

Both ambient and line sensing thermostats are available for dependable, accurate heater control. Explosion-proof and weatherproof units, housed in lightweight, die-cast enclosures with calibrated dial and external knob can be used in Class 3 hazardous locations, as well as certain groups in Class 1 and Class 2. For less hazardous areas both ambient and line sensing thermostats are available housed in standard watertight, dust tight, tamper-proof, corrosion-resistant, die-cast enclosures.

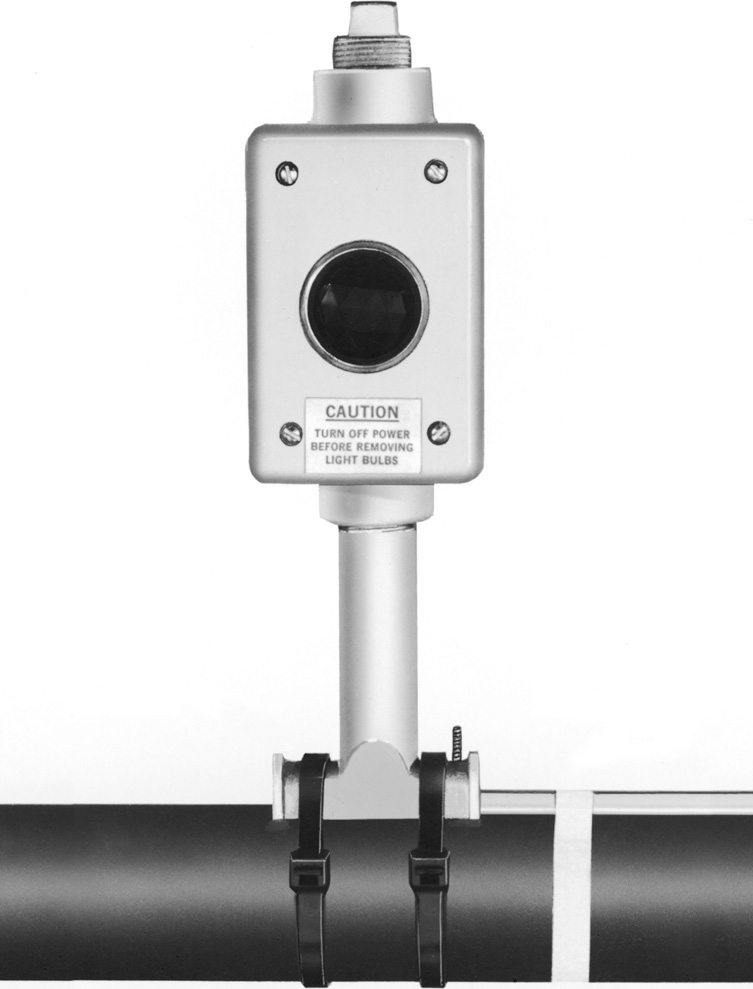

Monitor Light

Dekoron Series 1556 monitor lights, neon or incandescent, allow continuity monitoring of Dekoron 2300 and 2700 Series self-regulating heating elements. Monitor lights are supplied complete with all necessary hardware as well as instructions for installation.
